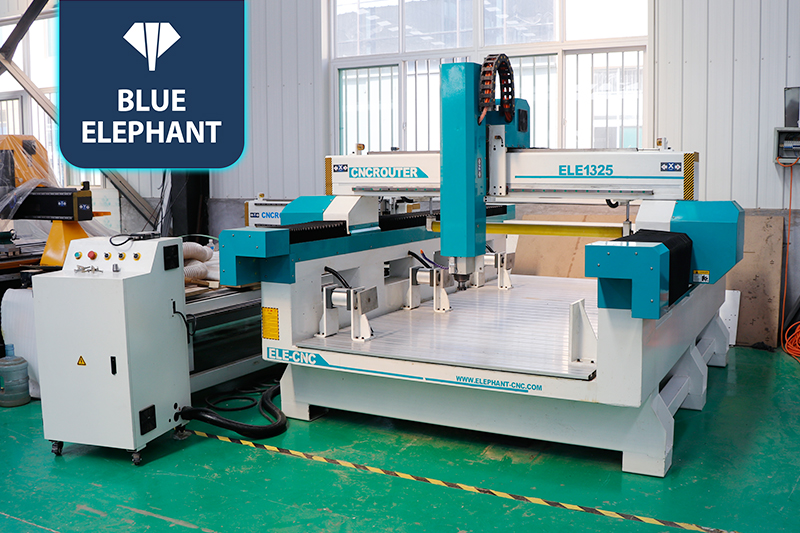

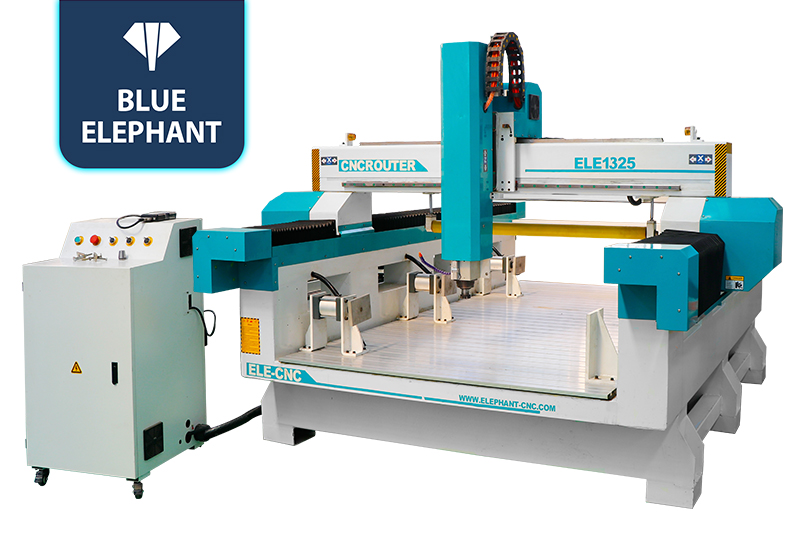

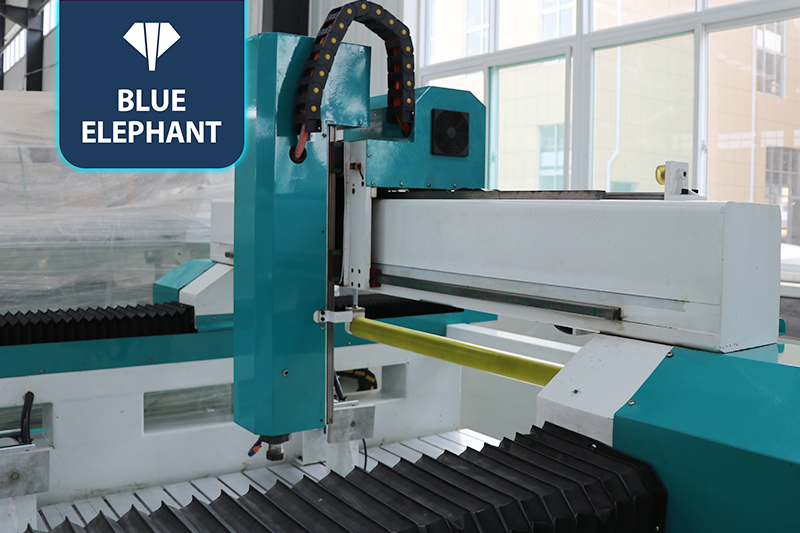

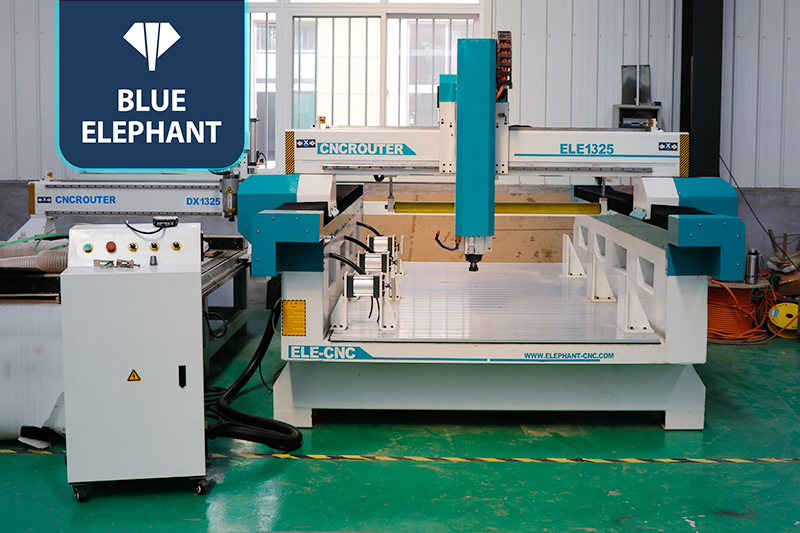

3D CNC Carving Machine with Press Roller in Japan, Denmark, Mexico

☆The foam engraving machine can engrave various large nonmetallic molds, especially for auto foam mold, wooden molds for ship, aviation and train. And it is also suitable for precise manufacture of casting wooden mold, food mold (such as moon-cake mold) and other molds.

CNC Router Machines Video

Parameters

Model ELECNC1325 EPS
X,Y axis travel 1300*2500mm, option: 1500*3000mm; 2100*3000mm; 2100*4000mm, etc
Z axis travel 500mm, option: 600mm, 700mm, 1000mm, etc
Spindle type 6kw HSD Italy air cooling spindle
Inverter type 7.5kw Delta inverter
Control system DSP A11 controller
Driving system 850W leadshine servo motor and driver
Reducer Japan Shimpo reducer
Machine structure Heavy duty body with quenching treatment
Work table Slot & aluminum work table
Positioning cylinder 4 pcs cylinder
Linear guide Taiwan linear guide
Transmission X,Y axis: Taiwan Helical Rack and Pinion
Z axis: Taiwan TBI high precision ball screw
Lubrication system automatic lubrication system
Tool calibration Manualtool sensor calibration
Cables Germany Igus cables with CE, cUL certificate
Compatible software Artcam / Aspire, etc
Command language G Code & M Code
Traveling speed 60m/min
Working speed 0-20m/min
Re-positioning accuracy ±0.03mm
System resolution ±0.0025mm
Working accuracy ±0.03mm
Working voltage 220V 1PH/3PH 50HZ/60HZ
380V 3PH 50HZ/ 60HZ

Application

Die and mold industries: The machine can engrave various large nonmetallic molds, especially for auto foam mold, wooden molds for ship,aviation and train. It is also suitable for precise manufacture of casting wooden mold, food mold (such as moon-cake mold) and other molds,etc.
Musical instrument industry: The machine can also engrave large 3D curved surface instruments and contour cutting.

Production Facility

Blue Elephant CNC Factory View
Blue Elephant CNC Router Machine Factory View

Quality Control & Testing

CNC Machine Quality Control Detail Image
CNC Machine Quality Control Images
