3015 4 Axis ATC CNC Machine for Sale with Favorable Price
☆This is a custom ATC 4 axis CNC wood router machine with a long X-axis travel. It can process 3D workpieces with high efficiency and accuracy due to the 4 axis working path. The automatic tool changing function significantly reduces the non-production time.
4 Axis CNC Router Machines Video
Features
- A customized worktable size of 3000x1500mm can meet the customer’s demands of long X-axis travel.
- The vacuum and T-slot table has a strong adsorption ability to such the workpieces firmly on the worktable during operation, preventing the panel from sliding or moving.
- The helical racks, guide rails, and ball screws adopt famous brand products to guarantee smooth operation and a long lifespan of the machine.
Parameters
| Description | Parameter |
| X,Y,Z Working Area | 3000x1500x400mm |
| X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
| Table Surface | Vacuum&T-slot Table |
| Frame | Welded Structure,heavy duty T-structure |
| X, Y Structure | Helical Rack gear, Abba 25# Linear Square Guide |
| Z Structure | Taiwan TBI Ball Screw, Abba 25# Linear Square Guide |
| Lubrication system | Automatic |
| Vacuum pump | 11kw water circlulation vacuum pump |
| Tool slots | 16 |
| Spindle Power | 5.5kw Changsheng HQD ATC water cooling spindle |
| Spindle Speed | 0-24000RPM |
| Drive Motors | Japan YASKAWA |
| Working Voltage | 220V,3phase,60HZ(option 380V, 3phase, 50HZ) |
| Control System | Taiwan SYNTEC |
| X,Y Resolution | <0.01mm |
| Software Compatibility | Type3 Software, (Option: Artcam Software) |
| Running Environment Temperature | 0 – 45 Centigrade |
Application

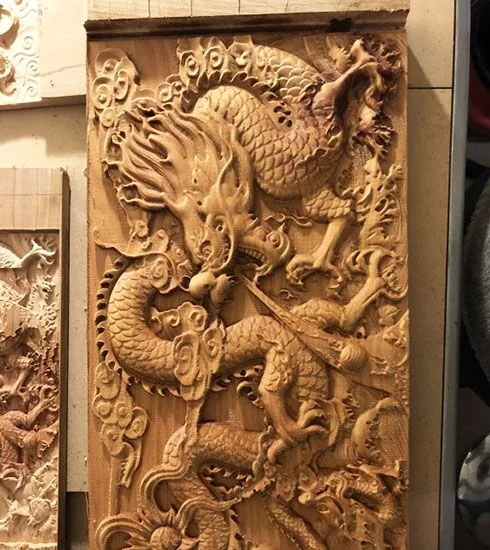

4 Axis CNC router has an swing spindle. It can change the direction automatically during the machining process without stopping. The 4 Axis CNC router has a wide range of applications in furniture, advertising, mold, decoration, construction and other fields and industries. In terms of functions, it can cut, engrave, drill, mill and groove. In regard to materials, 4 Axisrouter can process various wood materials, plastics, stone, soft metals and composites.
