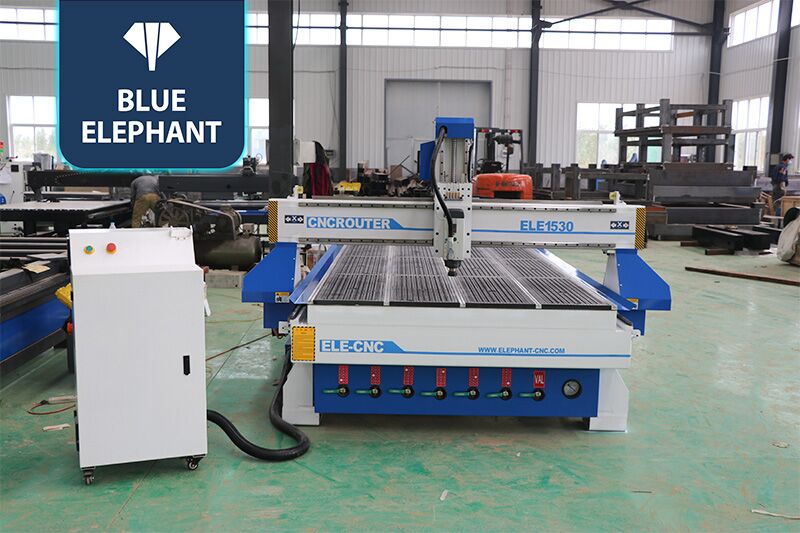

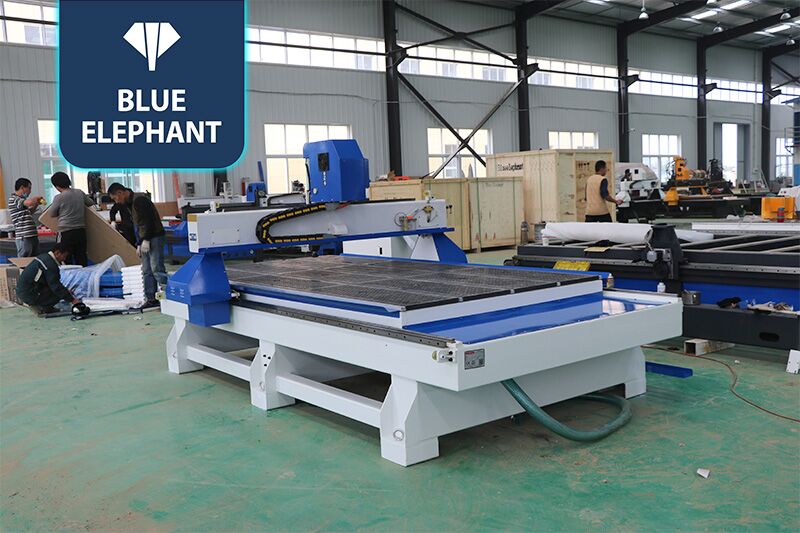

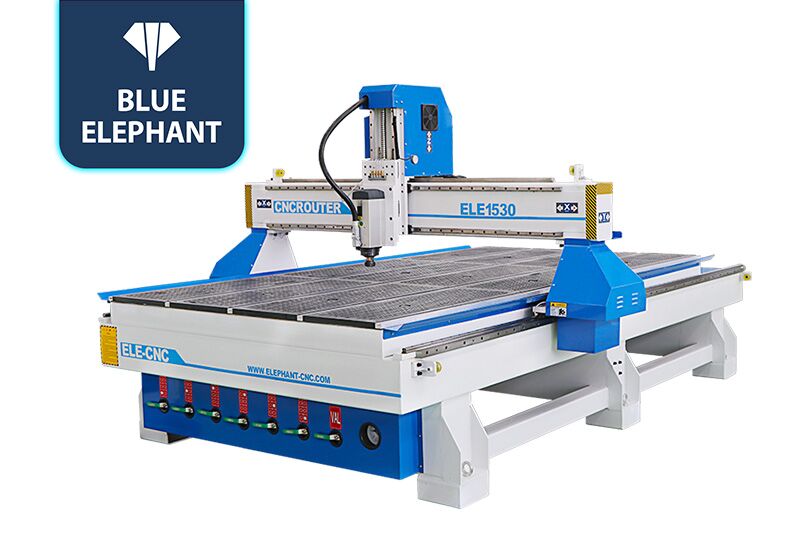

5×10 Wooden 3-Axis CNC Machine for Sale
☆This is a classical and economical 3 axis cnc router machine for cabinet door making. It has the advantages of low cost, fitful working area, high-quality cnc parts, etc.
CNC Router Machines Video
features
- 5x10ft worktable is big enough for most of polywood or MDF boards.
- It can fix the workpieces more firmly, saves time, and improves production efficiency.
- Equipped with an Italy HSD spindle, it ensures the CNC wood router have a high speed and efficiency.
Parameters
| Model | ELECNC1530 |
| X,Y axis travel | 1500*3000*200mm, option: 1300*2500mm; 2100*3000mm; 2100*4000mm, etc. |
| Z axis travel | 200mm, option: 300mm, 400mm, etc. |
| Spindle type | 6kw HSD air cooling spindle, ER32 |
| Inverter type | 7.5kw DETLA inverter |
| Tool holder with collet | ER32 collet: φ4, φ6, 1/8, 1/2 |
| Control system | DSP A11 Control system |
| Driving system | FL118 stepper motor and Leadshine 860H driver |
| Machine structure | Heavy duty body with quenching treatment |
| Work table | Aluminum T-slot&vacuum work table |
| Linear guide | Taiwan 25# Linear guide |
| Transmission | X, Y axis: Taiwan /Germany helical rack and pinion Z axis: Taiwan TBI high precision ball screw |

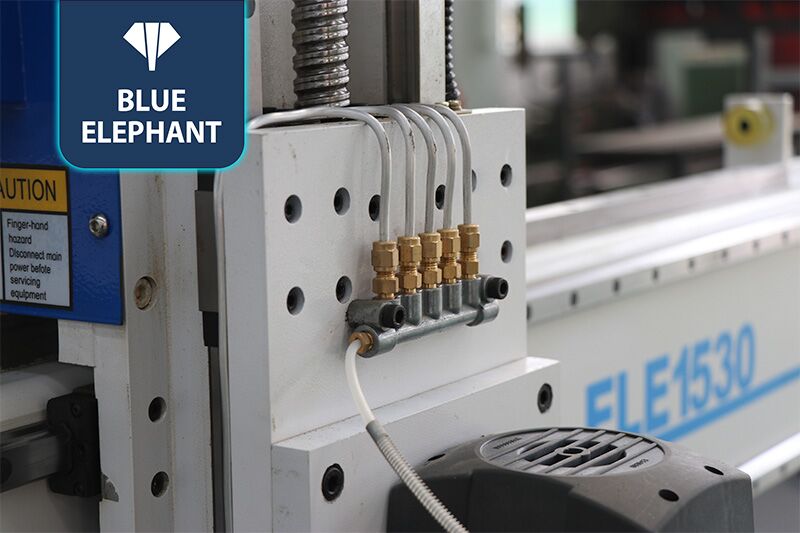

| Lubrication system | Automatic lubrication system |
| Tool calibration | Automatic tool sensor calibration |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | ARTCAM and Aspire |
| Command language | G Code |
| Traveling speed | 70-80m/min |
| Working speed | 0-25m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.03mm |
| Working air pressure | 0.6MPa |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
Application
Wood: natural wood, plywood, soft wood, hard wood, fiberboard, particle board, melamine board, LDF, MDF, chipboard.
Plastic and rubber: acrylic, ABS, HDPE, PVC, LDPE, UHMW, resin, double-colored board, PP, EVA.
Stone: granite, marble, slate, basalt, pebbles, ceramic, porcelain, natural and artificial stones.
Soft metal: aluminum, brass, copper, mild steel.
Composite: aluminum plastic composite, copper composite, titanium composite, zinc composite.
