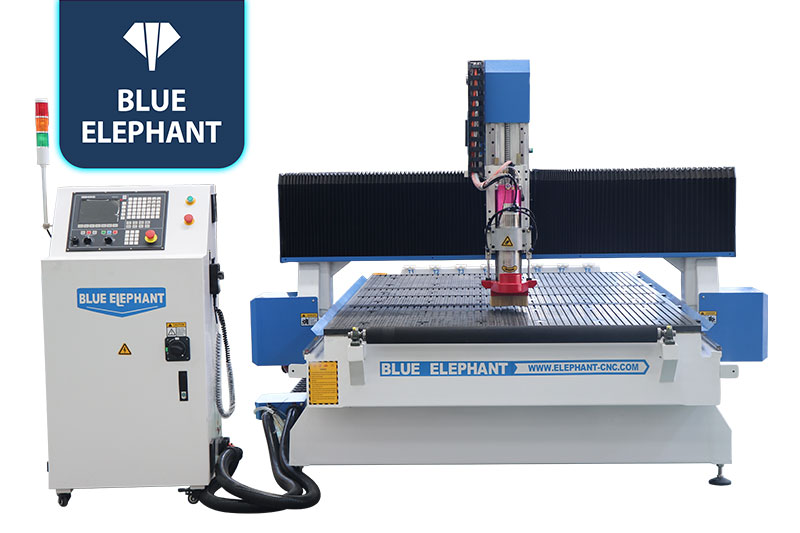

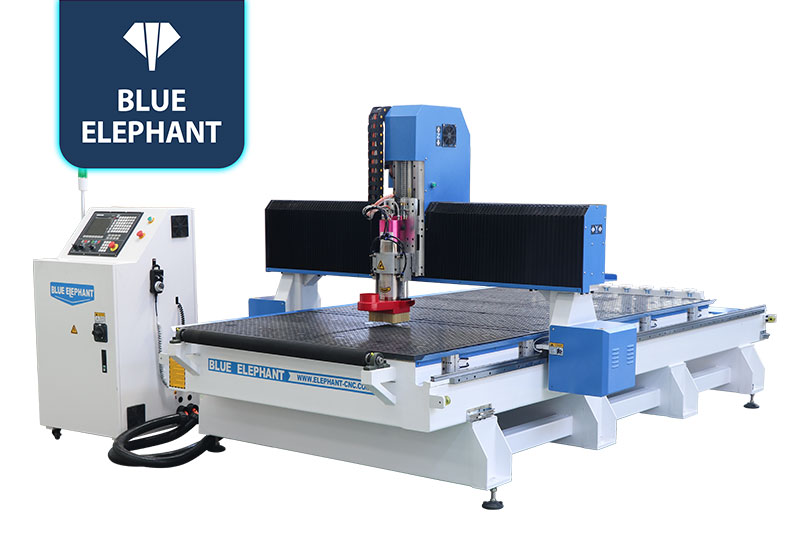

1530 ATC Woodworking Machine With Favorable Price

☆This ATC CNC machine has a linear tool magazine carrying 8 tools and can complete 8 processes in one operation. The heavy-duty square tube welded construction ensures that the machine runs at high speeds without vibration or distortion.

ATC CNC Router Machines Video

Features

  • The machine can switch between 8 tools without manual operation, improving accuracy and efficiency.
  • It adopts the NK control system with MPG, which is easy to learn and operate.
  • This CNC router machine can be customized to meet different processing demands.

Parameters

Serial Number S20190822Y
Model ELECNC-1530 ATC
Working area 1500*3000mm*200mm
Spindle 5KW Changsheng water cooling ATC spindle
Inverter 5kw Fuling inverter
Tool magazine Liner 8pcs tool magazines
Control system NK260 PC- Panel controller with MPG
Motor and driver 1000W Japan YASKAWA servo motor and driver

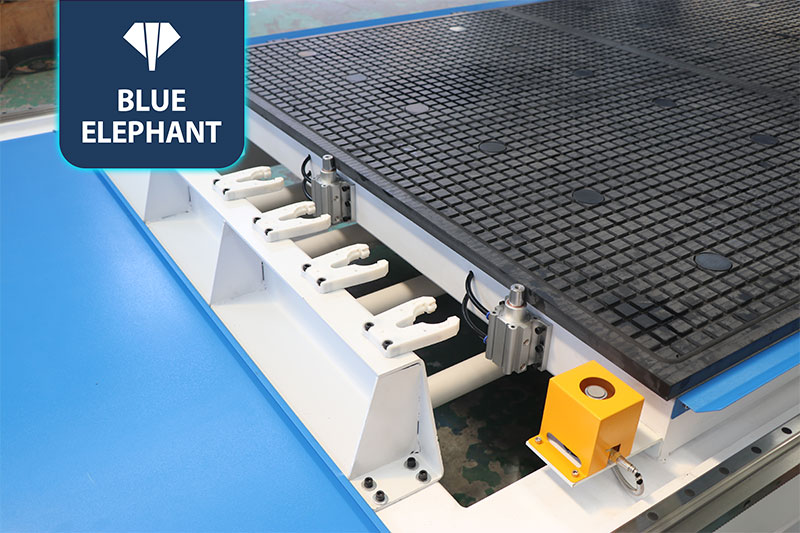

Working Table Total vacuum table (The vacuum table carving groove  width is 50mm, double vacuum holes –total 36 holes, Hole Diameter is also in 50mm
limit switch Japan OMRON limit switch
Reducer Japan Shimpo reducer

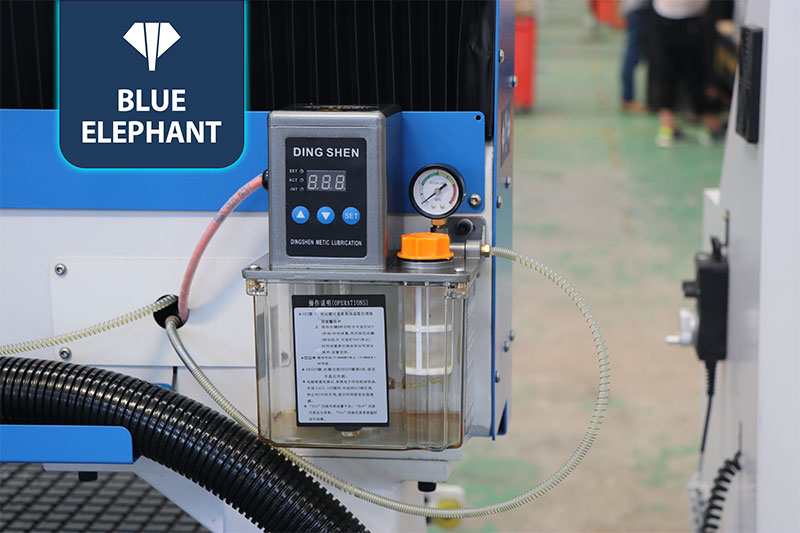

Lubrication system Automatic lubrication
Frame structure More heavy duty machine body (tube caliber size of 100mm, Steel thickness of 5mm added the beam and total eight legs )
Voltage 220v 3 phase 60HZ(optional)
Tool sensor Auto Tool sensor calibration
Software Compatibility Artcam 2012 software

Application

ATC CNC router has an independent tool magazine of linear type or carousel type. It can change the required tools automatically during the machining process without suspending the work. The ATC CNC router has a wide range of applications in furniture, advertising, mold, decoration, construction and other fields and industries. In terms of functions, it can cut, engrave, drill, mill and groove. Regarding to materials, ATC CNC router can process various wood materials, plastics, stone, soft metals and composites.

Production Facility

Blue Elephant CNC Factory View
Blue Elephant CNC Router Machine Factory View

Quality Control & Testing

CNC Machine Quality Control Detail Image
CNC Machine Quality Control Images
