2040 ATC Rotary Axis CNC Router for Sale to Klang, Calcutta, Melbourne at Cost Price

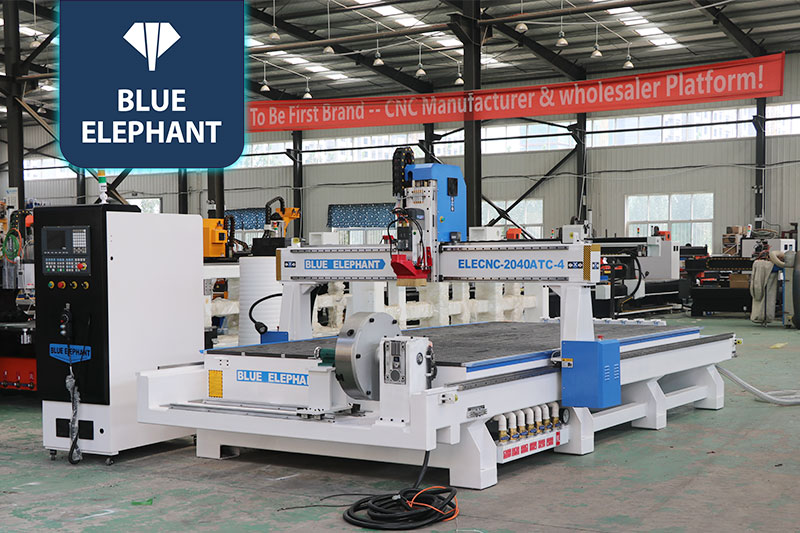

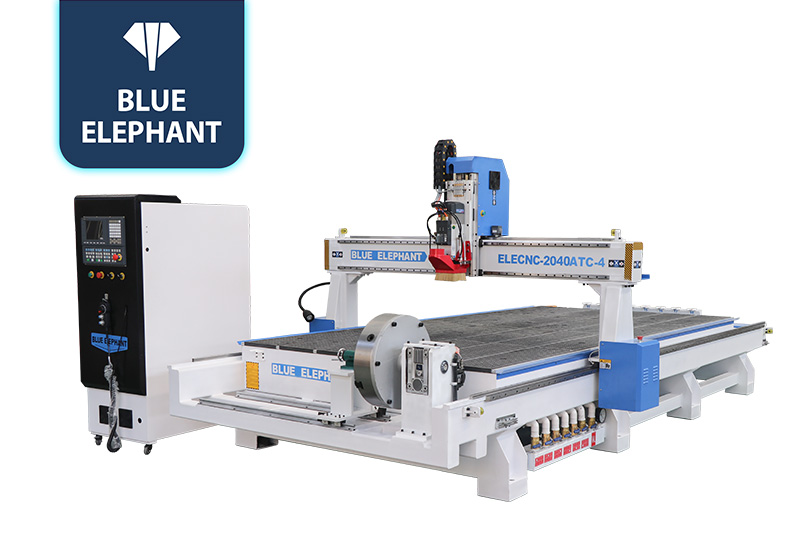

☆This is a high-efficiency CNC woodworking machine with an auto tool changing function and a front rotary device. For the machine with a long Y-axis travel, the front rotary device is a good choice if the processing length is less than or equal to the X-axis travel.
Rotary Axis CNC Router Machines Video
Features
- The large working size of 2000x4000mm can process most large-format wooden panel for various panel furniture production.

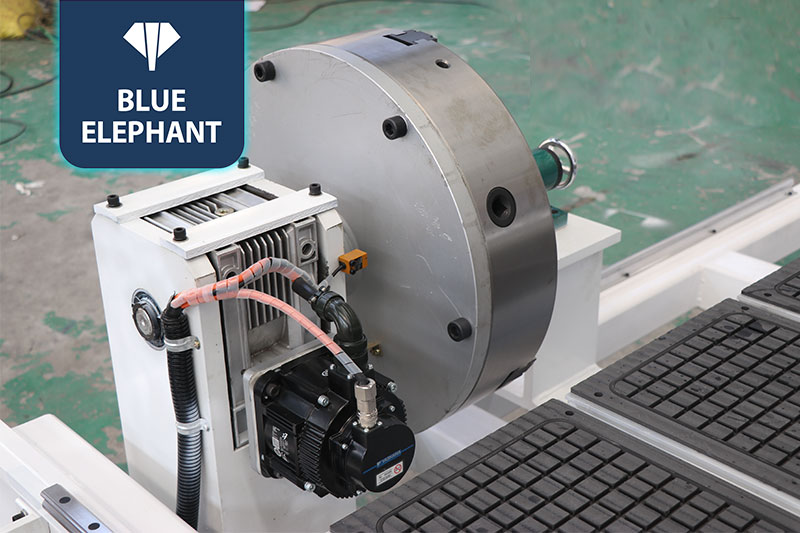

- It is provided with a rotary device with a large diameter that is mounted in front of the worktable, which is suitable for processing cylindrical parts with a length less than 2000mm.
- Specifications of this CNC router machine can be customized to meet different processing demands.
Parameters
| Serial Number | S20190930W |
| Model | ELECNC-2040 ATC |
| Working area | 2000*4000*400mm |
| Spindle | 9.6kw Italy HSD ATC air cooling spindle |
| Spindle speed | 24000RPM |
| Inverter | 11.0kw Taiwan Delta inverter |
| Tool magazine | Linear design 8 positions |
| Control system | Taiwan SYNTEC 6MB control system |
| Motor and driver | 850W YASKAWA servo motors and 1000 drivers |
| Working Table | T-slot & Vacuum working table with six zones |
| limit switch | Japan OMRON limit switch |
| Lubrication system | 1.5L Automatic lubrication system |
| Voltage | 380V, 3phase, 50/60HZ |
| Vacuum pump | 7.5kw water circulation vacuum pump |

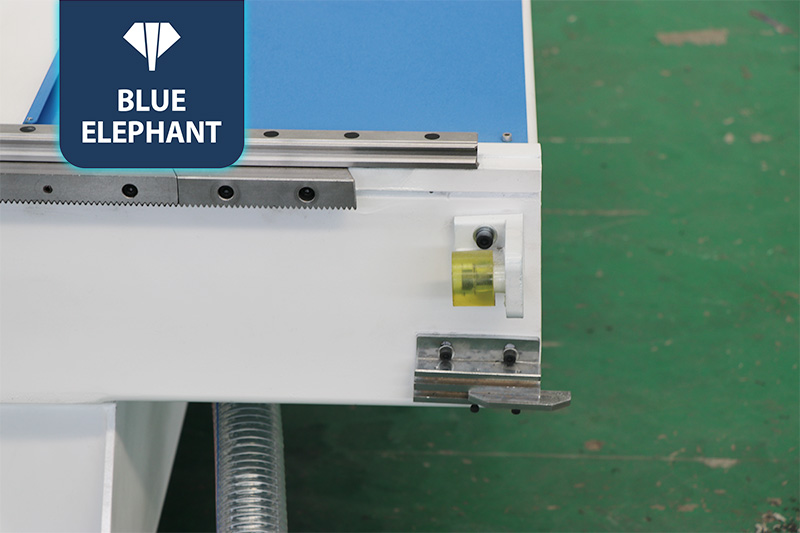

| X,Y,Z Transmission | Taiwan TBI ball screw for Z axis
Helical rack gear for X,Y axis |
| X,Y,Z Rail | 25mm Taiwan PMI/ Sweden ABBA Linear guide |
| Frame structure | Heavy duty bed more thicker |
| Cables | Shanghai Cardiff cables |
| Dust collector | 1.5kw new design double bags dust collector |
| Tool sensor | Auto tool sensor calibration |
| Software Compatibility | Artcam software |
Application
Except for the cutting, drilling, pocketing, routing, and other functions that a 3 axis router machine can achieve, it is also good at making cylindrical parts. For example, wood table and chair legs, wood handrails, wood or plaster building columns, 3D statues of wood, rubber, foam, etc.
