☆This is an automatic tool changing CNC router machine with a rotary device for the production of various furniture. It can process large-sized panels due to its big working size and a variety of cylindrical parts thanks to the rotary device. [块 id=”559″]

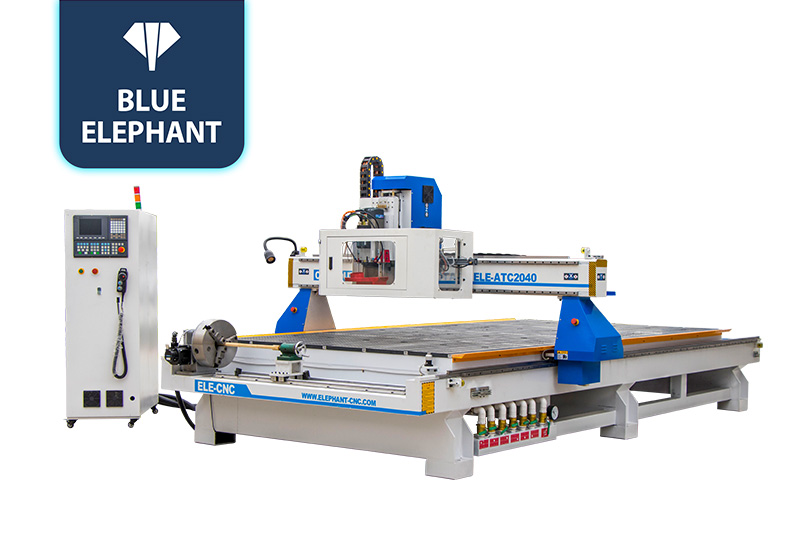

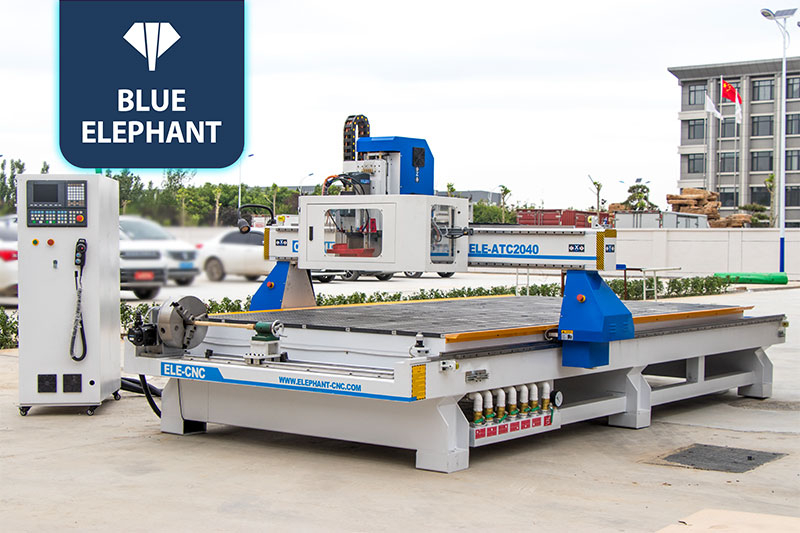

Top Ranked 2040 ATC CNC Router with Rotary Device in Paraguay, Honduras
[/row]
旋转轴数控路由器机器视频
Features
- 2000x4000mm的超大工作尺寸可以加工大部分大规格木板，用于各种板式家具的生产。
- 该数控机床配备9kW风冷主轴，可完成强大的切割和雕刻工作，速度快，精度高。
- ATC数控机床无需人工操作即可在大量刀具之间切换，提高精度和效率。
[排]

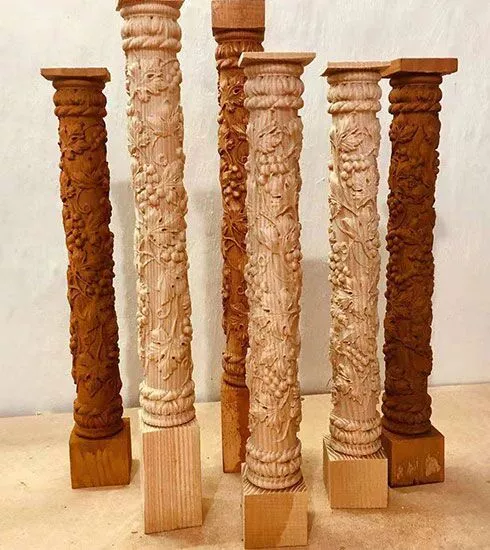

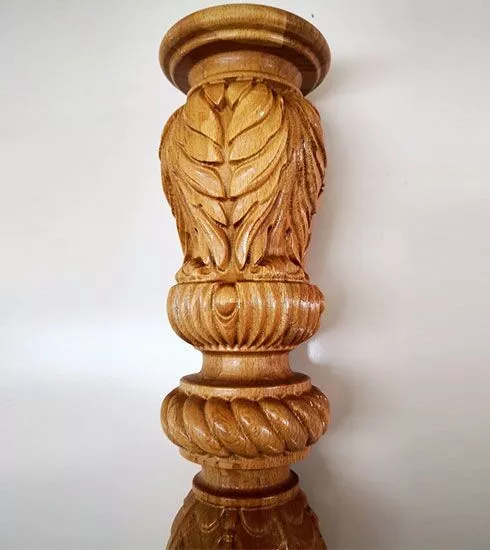

除了切割、钻孔、装袋、铣削等三轴铣床可以实现的功能外，它还擅长制作圆柱形零件。例如，木桌椅腿、木扶手、木头或石膏建筑柱、木头、橡胶、泡沫等的 3D 雕像。
[块 id=”1107″] Parameters
描述
参数
模型
ELECNC-2040ATC
工作尺寸
2060*4000*200mm
颜色
白色和蓝色（可定制）
工作电压
380V，三相，50Hz
控制系统
SYNTEC控制系统
主轴
9kw意大利HSD ATC风冷主轴
逆变器
11kw台达逆变器
电机和驱动器
850w Japan YASKAWA servo motor and 1kw driver
Table surface
T-slot and vacuum working table
Lubrication system
Auto Lubrication system

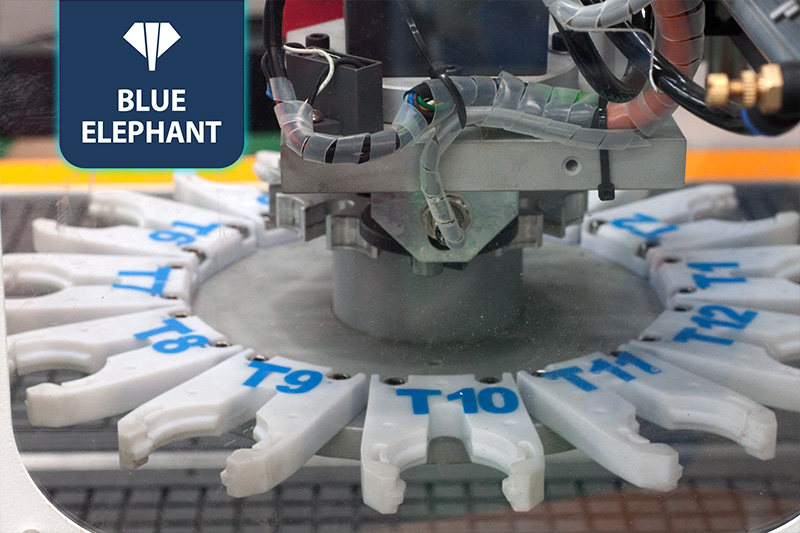

Automatic tool magazine
12
Gantry structure
Gantry moving
Structure
New type thicker and bigger heavy duty welded frame and gantry
Transmission
X,Y rack and pinion drive, Z Taiwan TBI ball screw
Rail
ABBA 25#
Mist cooling sprayer
Automatic oil mist cooling sprayer

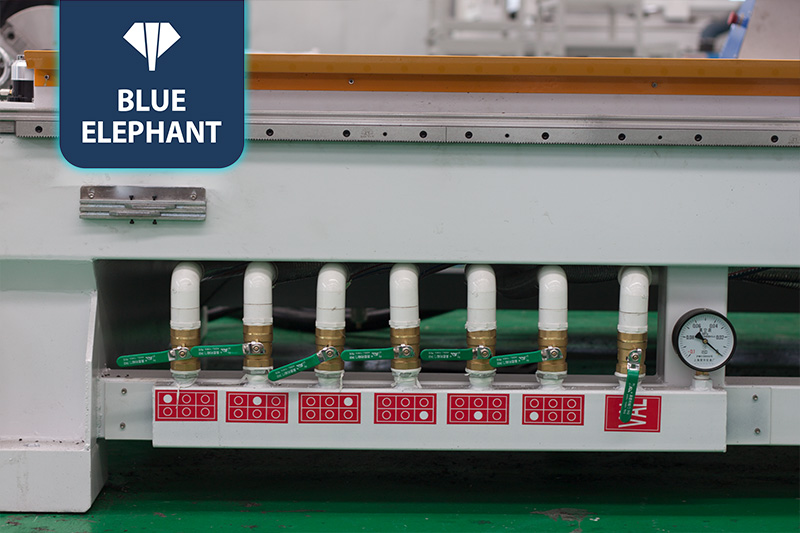

Vacuum pump
2 sets 5.5kw water circulation vacuum pump (380V, 3Phase, 50Hz)
Dust collector
1.5kw new type double packet dust collector (380V, 3Phase, 50Hz)
Tool sensor
Automatic tool sensor calibration
Rotary device diameter
300mm

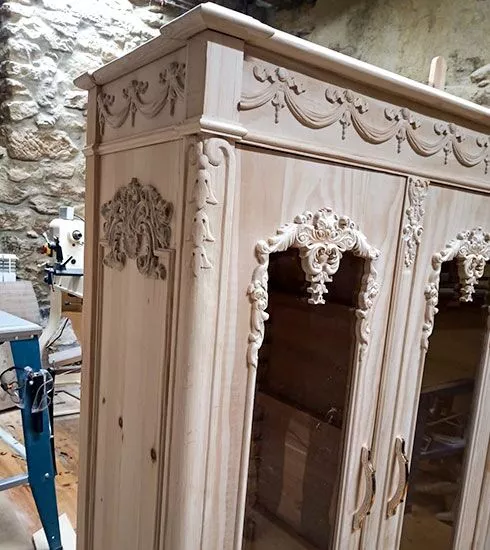

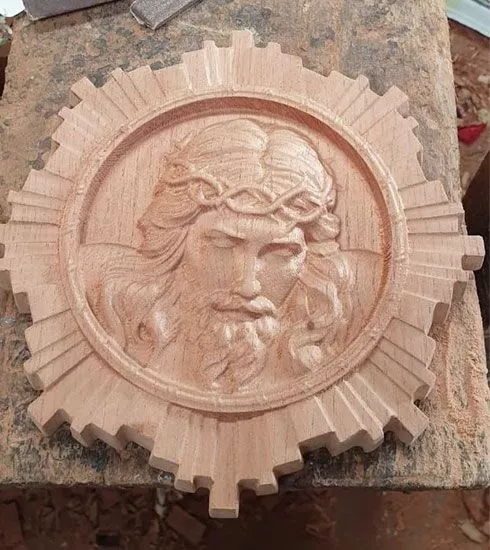

Application
Production Facility
Quality Control & Testing
